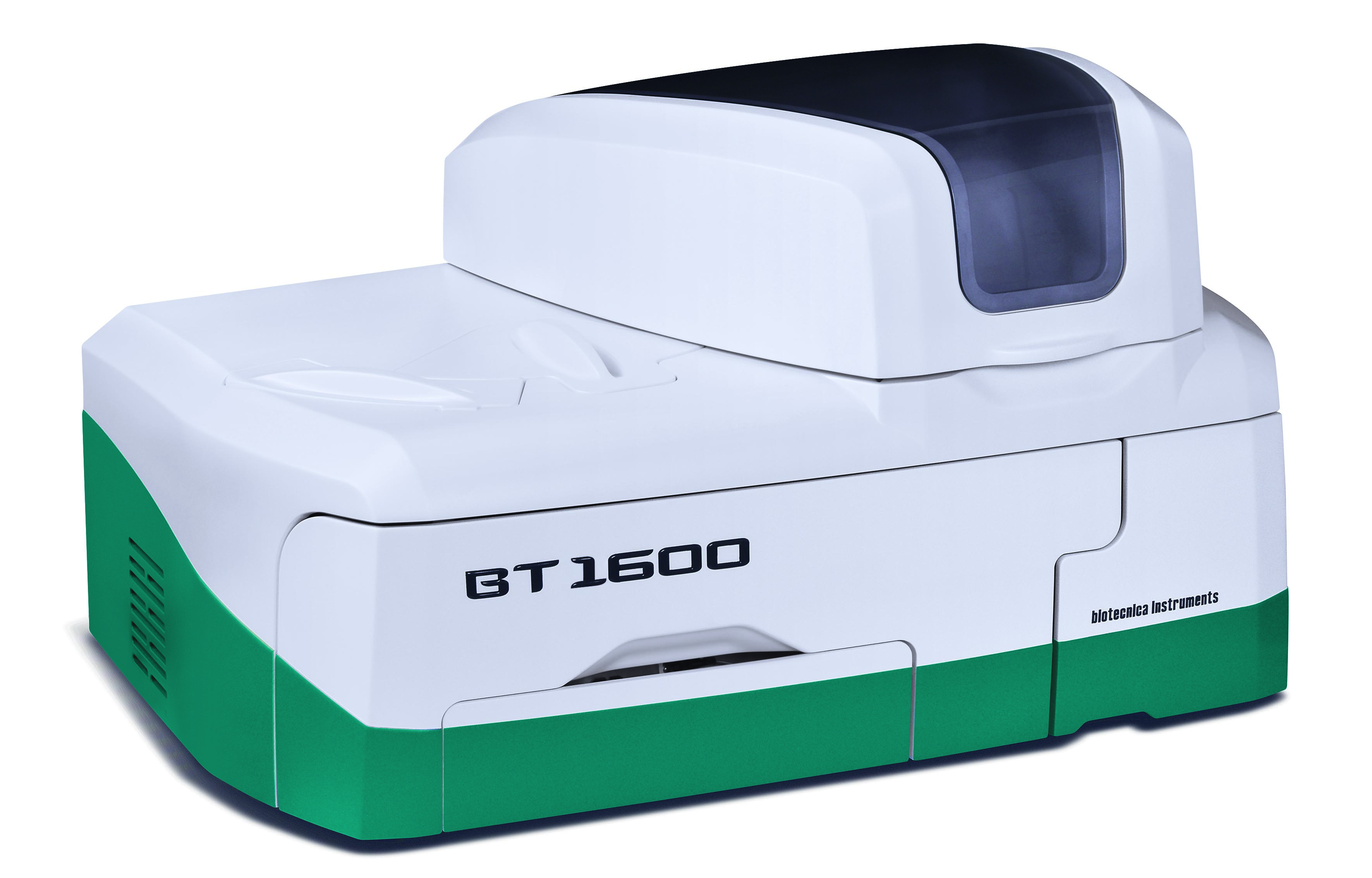

BT 1600
The new BT1600 Small, Powerful and always ready. The compatible benchtop Analyzer for all Labs. LED light source guarantees long life and stability.
ANALYSES TYPE |
Clinical Chemistry, Turbidimetric, I.S.E. |
THROUGHPUT |
up to 240 tests/hr |
TEST MODES |
Random Access, Batch, STAT |

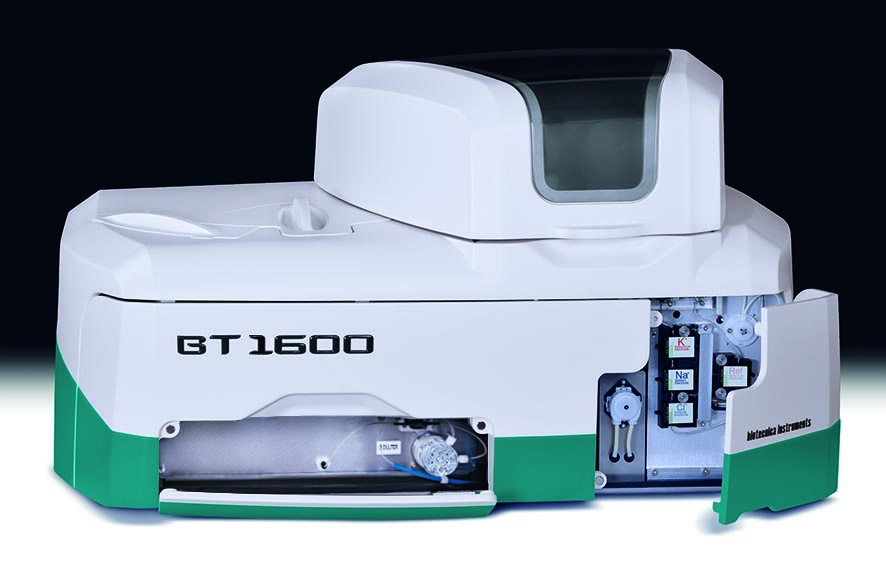

ISE MODULE ON BOARD (Optional) |
Na, K, Cl (indirect potentiometry) |
WATER CONSUMPTION |
1125ml/hr±20% |
CUVETTES NUMBER (6 mm glass) |
45 |
REAGENTS POSITIONS |
40+40 |
BAR CODE |
1 For Reagents and Samples (Optional) |
REFRIGERATED REAGENT BAY |
from 5-15°C |
REACTION VOLUME |
from 180 to 380 µl |
SAMPLE VOLUME |
from 1.8 to 200 µl |
SAMPLING ARMS |
1 |
CRASH SENSOR |
YES |
SAMPLE TRAY # OF POSITIONS |
60 Total, in six sector, refrigerated |
STANDARD&CTRL # OF POSITIONS |
60 Total, in the samples tray, refrigerated |
SAMPLE PRE-DILUITION |
YES |
SERUM / REAGENT REFRIGERATOR |
YES |
CROSS CONTAMINATION SOFTWARE MANAGEMENT |
YES |
CLOT SENSOR |
YES |
PHOTOMETER |
Solid state 14 Channel 340-800nm+reference channel and OPTICAL FIBER |
PHOTOMETER LED LAMP |
YES |
PHOTOMETER LINEARITY |
Up to 3.0 O.D. |
PHOTOMETER SENSITIVITY |
± 0.001 Abs. |
DILUTER |
1 - Long Life Ceramic: 340µl (samples and reagents) |
DILUTER RESOLUTION |
0.1 µl |
VACUUM PUMP SYSTEM |
Internal |
SEPARATED WASTE TANKS |
YES |
REMOTE DIAGNOSTICS |
YES |
COMPUTER |
Optional External PC (see below specification) |
PERIPHERALS |
Optional, on request printer & UPS (1000 W) |
INTERFACE |
1 USB 2.0 to PC |
DIMENSIONS |
Height 18,5", Width 33", Deph 23,6" (47x84x60 cm) |
WEIGHT |
132 lb (60 Kg) |
EXTERNAL PC MINIMUM REQUIREMENTS |
|
OPERATIVE SYSTEM |
Windows® 10-11 English (64 bit) |
COMPUTER |
Desktop/Laptop |
PROCESSOR |
Intel I3, 1.9 Ghz or more |
RAM |
4GB |
VIDEO |
SVGA 32k Color, or LCD compatible interface |
DISPLAY |
Color, min. resolution 1366x768, (1024x768 for Laptop) |
HOST COMMUNICATION |
RS232, Ethernet |
USB |
1 USB 2.0 to Analyzer |
PRINTER |
Windows® Compatible color printer |
HD |
>500Gb |
Features may change without notice |
|
