Clinical Chemistry, Turbidimetric, I.S.E. (only BT3700i)

up to 360 TestS/hr + up to 180 I.S.E. Test/hr (only BT3700i)

Random Access, Batch, STAT

Na, K, Cl (indirect potentiometry) (only BT3700i)

WATER AND DETERGENT CONSUMPTION

System solution 1500ml/hr±20%, detergent 350ml/hr±20%

BUILT-IN TOUCH DISPLAY

4.3" Color TFT

CUVETTES NUMBER (6 mm glass)

76/4 sectors, non disposable

REAGENTS POSITIONS

80 Total, 40 using 50 or 80 mL vessels + 40 using 10 or 20 mL vessels

REFRIGERATED REAGENT BAY

from 10 to 15°C

REACTION VOLUME

from 180 to 400 µL

SAMPLE VOLUME

from 2.0 to 300 µL

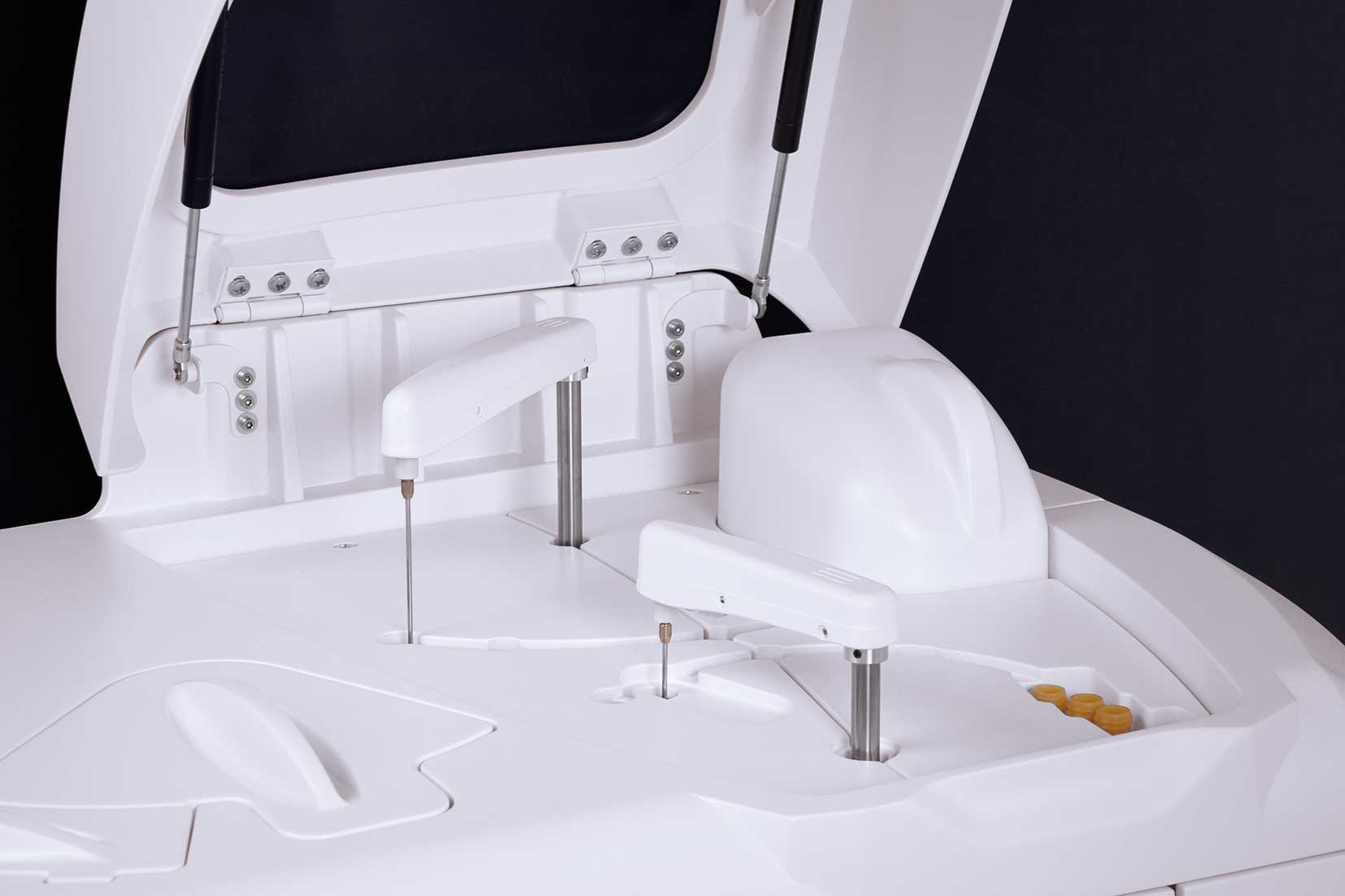

SAMPLING ARMS

2

CRASH SENSOR

YES

SAMPLE TRAY # OF POSITIONS

60 Total, in six sector, refrigerated

STANDARD&CTRL # OF POSITIONS

60 Total, in the samples tray, refrigerated

SAMPLE PRE-DILUITION

YES

SERUM / REAGENT REFRIGERATOR

YES

CROSS CONTAMINATION SOFTWARE MANAGEMENT

YES

CLOT SENSOR

PHOTOMETER

Solid state 14 Channel 340-800nm+reference channel and OPTICAL FIBER
(340,380,405,436,480,510,546,578,600,630,660,700,740,800nm)

PHOTOMETER LED LAMP

YES

PHOTOMETER LINEARITY

Up to 3.0 O.D.

PHOTOMETER SENSITIVITY

± 0.001 Abs.

DILUTER

1 - Long Life Ceramic: 470µL

DILUTER RESOLUTION

0.1 µL

FLOOD SENSOR

YES

VACUUM PUMP SYSTEM

Internal

SEPARATED WASTE TANKS

YES

REMOTE DIAGNOSTICS

YES

COMPUTER

Optional External PC (see below specification)

PERIPHERALS

Optional, on request printer & UPS (900 W)

INTERFACE

1 USB 2.0 to PC

DIMENSIONS

Height 19.7", Width 33.5", Deph 23,6" (50x85x60 cm)

WEIGHT

145 lb (66 Kg)

OPERATIVE SYSTEM

Windows® 10 Professional (64 bit)

COMPUTER

Desktop/Laptop Windows compatible (optional)

PROCESSOR

Intel I3, 1.9 GHz or more

RAM

4GB

DISPLAY

Color, min. resolution 1366x768, (1024x768 for Laptop)

HOST COMMUNICATION

RS232, Ethernet

USB

6 USB 2.0 (4 USB 2.0 for Laptop)

PRINTER

Windows® Compatible color printer

HD

>250GB
