BT 1600

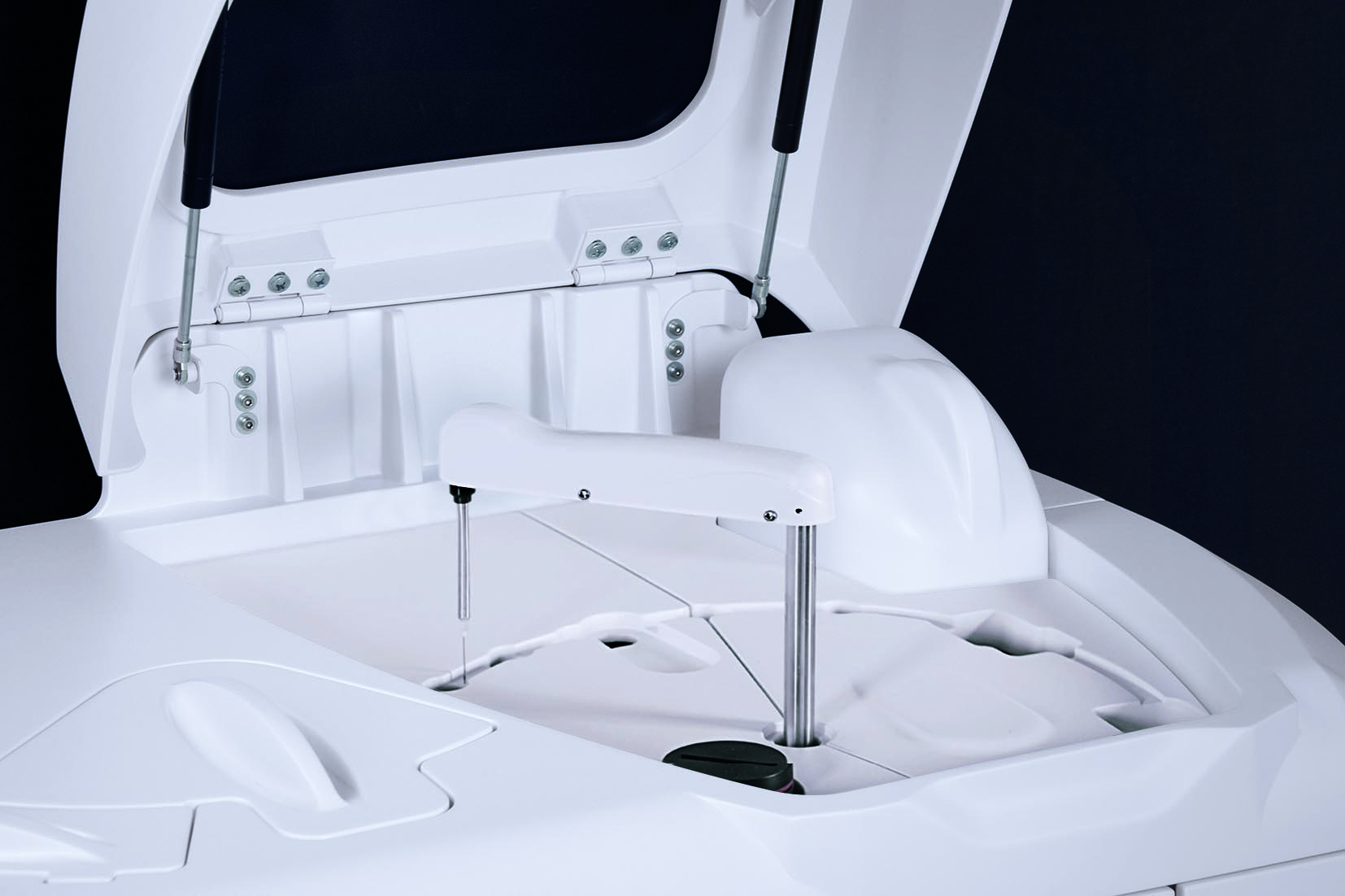

The new BT1600 Small, Powerful and always ready. The compatible benchtop Analyzer for all Labs. LED light source guarantees long life and stability.
ANALYSES TYPE |
Clinical Chemistry, Turbidimetric, I.S.E. (only BT1600i) |
THROUGHPUT |
up to 240 Chem.Test/hr + up to 180 I.S.E. Test/hr (only BT1600i) |
TEST MODES |
Random Access, Batch, STAT |
ISE MODULE |
Na, K, Cl (indirect potentiometry) (only BT1600i) |
WATER AND DETERGENT CONSUMPTION |
System solution 1200ml/hr±20%, detergent 100ml/hr±20% |
CUVETTES NUMBER (6 mm glass) |
45/4 sectors, non disposable |
REAGENTS POSITIONS |
80 Total, 40 using 50 or 80 ml vessels + 40 using 10 or 20 ml vessels |
BAR CODE |
1 For Reagents and Samples (Optional) |
REFRIGERATED REAGENT BAY |
from 10 to 15°C |
REACTION VOLUME |
from 180 to 380 µl |
SAMPLE VOLUME |
from 2.0 to 200 µl |
SAMPLING ARMS |
1 |
CRASH SENSOR |
YES |
SAMPLE TRAY # OF POSITIONS |
60 Total, in six sector, refrigerated |
STANDARD&CTRL # OF POSITIONS |
60 Total, in the samples tray, refrigerated |
SAMPLE PRE-DILUITION |
YES |
SERUM / REAGENT REFRIGERATOR |
YES |
CROSS CONTAMINATION SOFTWARE MANAGEMENT |
YES |
CLOT SENSOR |
YES |
PHOTOMETER |
Solid state 14 Channel 340-800nm+reference channel and OPTICAL FIBER |
PHOTOMETER LED LAMP |
YES |
PHOTOMETER LINEARITY |
Up to 3.0 O.D. |
PHOTOMETER SENSITIVITY |
± 0.001 Abs. |
DILUTER |
1 - Long Life Ceramic: 340µL (samples and reagents) |
DILUTER RESOLUTION |
0.1 µL |
VACUUM PUMP SYSTEM |
Internal |
SEPARATED WASTE TANKS |
YES |
REMOTE DIAGNOSTICS |
YES |
COMPUTER |
Optional External PC (see below specification) |
PERIPHERALS |
Optional, on request printer & UPS (900 W) |
INTERFACE |
1 USB 2.0 to PC |
DIMENSIONS |
Height 19.7", Width 33.5", Deph 23,6" (50x85x60 cm) |
WEIGHT |
145 lb (66 Kg) |
POWER SUPPLY |
Universal input 100-240 Vac, 50-60 Hz, 800W, PFC |
FLOOD SENSOR |
YES |
CUVETTE TEMP. CONTROL |
Dry system OFF/37°C (±0,2°C) |
MAINTENANCE |
Software assisted |
TEST DIRECTORY |
Up to 500 + relation test |
BUILT-IN QC PROGRAM |
3 levels known, 3 levels unknown |
EXTERNAL PC MINIMUM REQUIREMENTS |
|
OPERATIVE SYSTEM |
Windows® 10 Professional (64 bit) |
COMPUTER |
Desktop/Laptop Windows compatible (optional) |
PROCESSOR |
Intel I3, 1.9 Ghz or more |
RAM |
4GB |
DISPLAY |
Color, min. resolution 1366x768, (1024x768 for Laptop) |
HOST COMMUNICATION |
RS232, Ethernet |
USB |
6 USB 2.0 (4 USB 2.0 for Laptop) |
PRINTER |
Windows® Compatible color printer |
HD |
>250Gb |
Rev.11/2025 |
|
