BT 3600

BT 3600

BT 3600

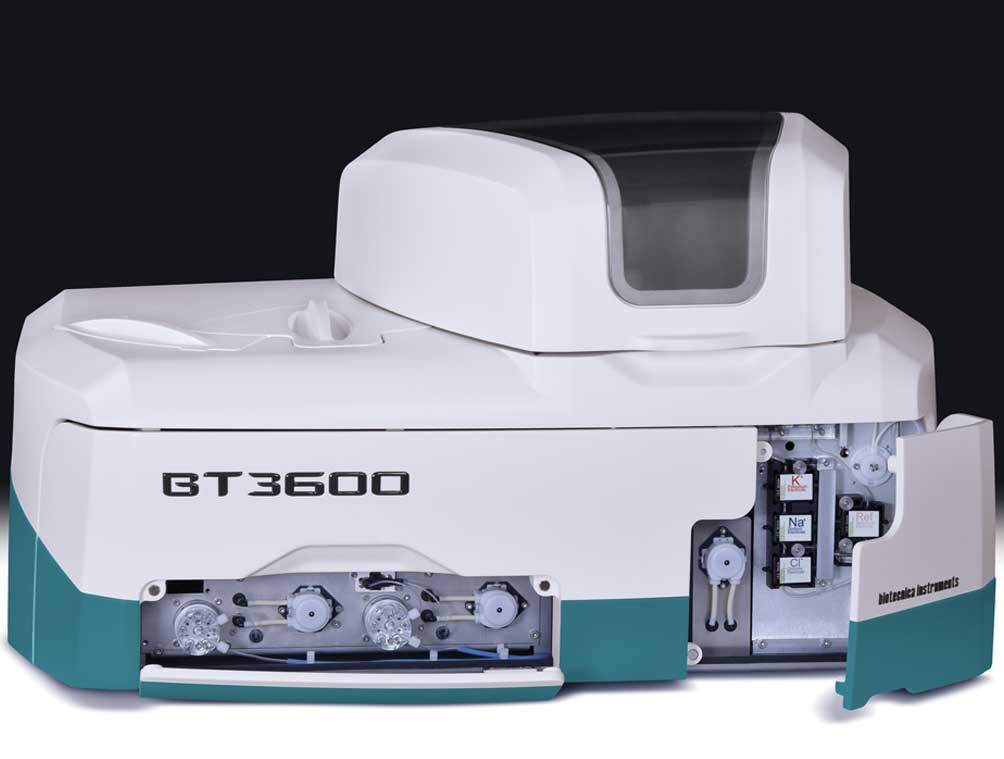

The BT 3600 is a new fixed cycle analyzer with built-in 3-parameters I.S.E. Module.

Brochure
Visualizza la brochure

SPECIFICHE TECNICHE

ANALYSES TYPE

Clinical Chemistry, Turbidimetric, DOA, I.S.E.

THROUGHPUT

up to 480 Chem. Tests/hr single reagent
up to 240 Chem. Tests/hr double reagent
up to 288 Chem. Tests/hr combined
up to 180 Chem. I.S.E. Tests/hr

WATER CONSUMPTION

3300ml/hr±20%

ISE MODULE ON BOARD

Na, K, Cl, (indirect potentiometry)

NUMBER OF REAGENTS

80 TOTAL: 40 using 50 or 80 ml vessels +
40 using 10 or 20 vessels

REFRIGERATED REAGENT BAY

from 5 -15° C

REACTION VOLUME

from 180 to 380 µl

READING CUVETTES

64 non-disposable, optical glass

SAMPLING ARMS

2: one for samples and one for reagents

SAMPLE TRAY # OF POSITIONS

60 Total, in six sectors, refrigerated

STANDARD&CTRL #OF POSITIONS

60 Total, in the samples tra, refrigerated

TEST MODES

Sequential Access, Batch, STAT

TEST DIRECTORY

Up to 500 + Relation Test

CUVETTE TEMP. CONTROL

Dry System Off/37°C (±0.2°C)

VACUUM PUMP SYSTEM

Internal

PHOTOMETER

Solid State 14 Channel 340-800nm + reference channel
(340,380,405,436,480,510,546,578,600,630,650,700,740, 800nm)

PHOTOMETER LINEARITY

Up to 3.0 O.D.

PHOTOMETER SENSITIVITY

± 0.001 Abs.

DILUTER

2 - Long Life Ceramic: 1x340µl (reagents) and 1x340µl (samples)

DILUTER RESOLUTION

0.1 µl

CLOT SENSOR and CRASH SENSOR

Clot sensor (samples arm) with enable/disable function and crash sensor

BAR CODE

1 for Reagents and Samples

BUILT IN QC PROGRAM

3 Level Known, 3 Level Unknown

MAINTENANCE

Software assisted

COMPUTER

Optional External PC (see below specification)

OPERATIVE SYSTEM

See PC minimum requirements below

PERIPHERALS

OPTIONAL, on request printer & UPS (900W)

INTERFACE

USB 2.0. to PC

REMOTE DIAGNOSTICS

Optional

POWER SUPPLY

Universal input 100/240 Volt, 50-60 Hz, 750 Watt, PFC

DIMENSION

Height 18,5", Width 33", Deph 23,6" (47x84x60 cm)

WEIGHT

132 lb (60 Kg)

EXTERNAL PC MINIMUM REQUIREMENTS

OPERATIVE SYSTEM:
COMPUTER:
PROCESSOR:

Windows® 7/8/10 Professional English (64 bit)
Optional Windows® Compatible (Desktop/Laptop)
Intel® I3 1.9 Ghz or more

RAM:

4 GB

VIDEO:

SVGA 32K Color, or monitor compatible interface

DISPLAY:

Color, min. resolution 1366x768, (1024x768 for notebook)

HOST COMMUNICATION:

RS232, Ethernet

USB:

N° 6, version 2.0 (N° 4 for notebook)

PRINTER:

Windows® Compatible color printer

ETHERNET:

100 Mb

CD DRIVE:

DVD or CD-ROM

HD:

>500Gb, do not use flash HD (EEPC)

Le caratteristiche possono cambiare senza nessun avviso
