TECHNICAL SPECIFICATIONS

Throughput

Up to 250 Tests/Hr

ISE module on board

Not available

Number of Reagents

48 Total - 24 using 50 ml vessel - 24 using 10 or 20 ml vessel

Refrigerated reagent bay

Yes

Reaction volume

From 180 to 400 µl

Reading Cuvettes

32 non-disposable optical glass

Sample volume

From 1,8 to 100 µl

Sampling Arms

1 for Serum and Reagents

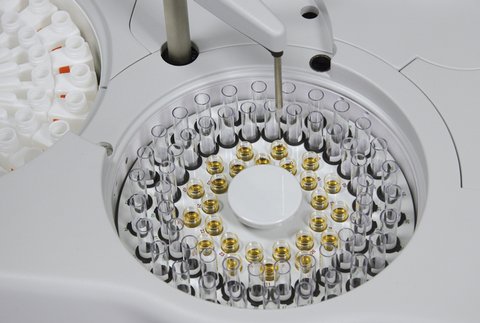

Sample tray # of position

78 Total - 62 Samples - 16 Standards and Controls

Test Modes

Random Access, Batch, STAT

Test Directory

Up to 500

Cevette temp. control

Peltier System OFF/30/32/37°C (±0,2°C)

Photometer

Solid State 10 Channel + reference channel

Photometer accuracy

± 1% (0-2 O.D.), + 2,5% (2-3 O.D.)

Photometer sensitivity

± 0,001 Abs

Diluter

1 - Long life ceramic 340 µl

Diluter precision

± 0,1% f.s.

Diluter resolution

0,1 µl

Bar Code

Optional, both for Reagents & Samples

Computer

External PC - optional - See PC minimum requirements below

Pheripherals

Optional, on request printer & UPS

Process electronics

7microcontroller. I² CBUS Protocol

Interface

USB 2.0 to PC

Built in QC Program

Yes/3 Level Known, 3 Level Unknown

Maintenance

Software Assisted

Power Supply

Universal Input 100/240 Volts, 50-60 Hz, 300 Watt, PFC

U.P.S.

1000 Watt - Optional

Dimension

Heigh-51cm (20"),Width-78cm (30.7"), Depth-58cm (22.8")

Weight

53 Kg (116 lb)

clot sensor

Not available

Peso

53 Kg

EXTERNAL PC MINIMUM REQUIREMENTS FOR BT 1500

Operative System

Windows 2000® Professional
Windows XP
Windows Vista (32 bit) - Windows 7 (32 bit)

Computer

IBM compatible

Processor

Pentium Dual core duo

Ram

1Gb (2Gb for Windows Vista)

Video

SVGA or compatible, 32K colors

Mouse

Serial, PS2 or USB, 2+1 button

Host Communication

RS232 or LAN (TCP/IP)

USB

1, version 2.0 for communication with the analyzer

Parallel port

1, if the printer has a parallel port

Printer

Windows compatible Deskjet, Inkjet or Laser
(printer must be installed on the PC before installing the operative software

CD ROM

DVD reader

HD

5Gb free

Note: use a standard theme for all the windows and font 96 DPI

Features may change without notice
